LOCATION

Quebec, Canada

SIZE

39,365 ha

STAGE

Discovery

DEPOSIT TYPE(S)

Orogenic Au, Intrusion-related Au, VMS

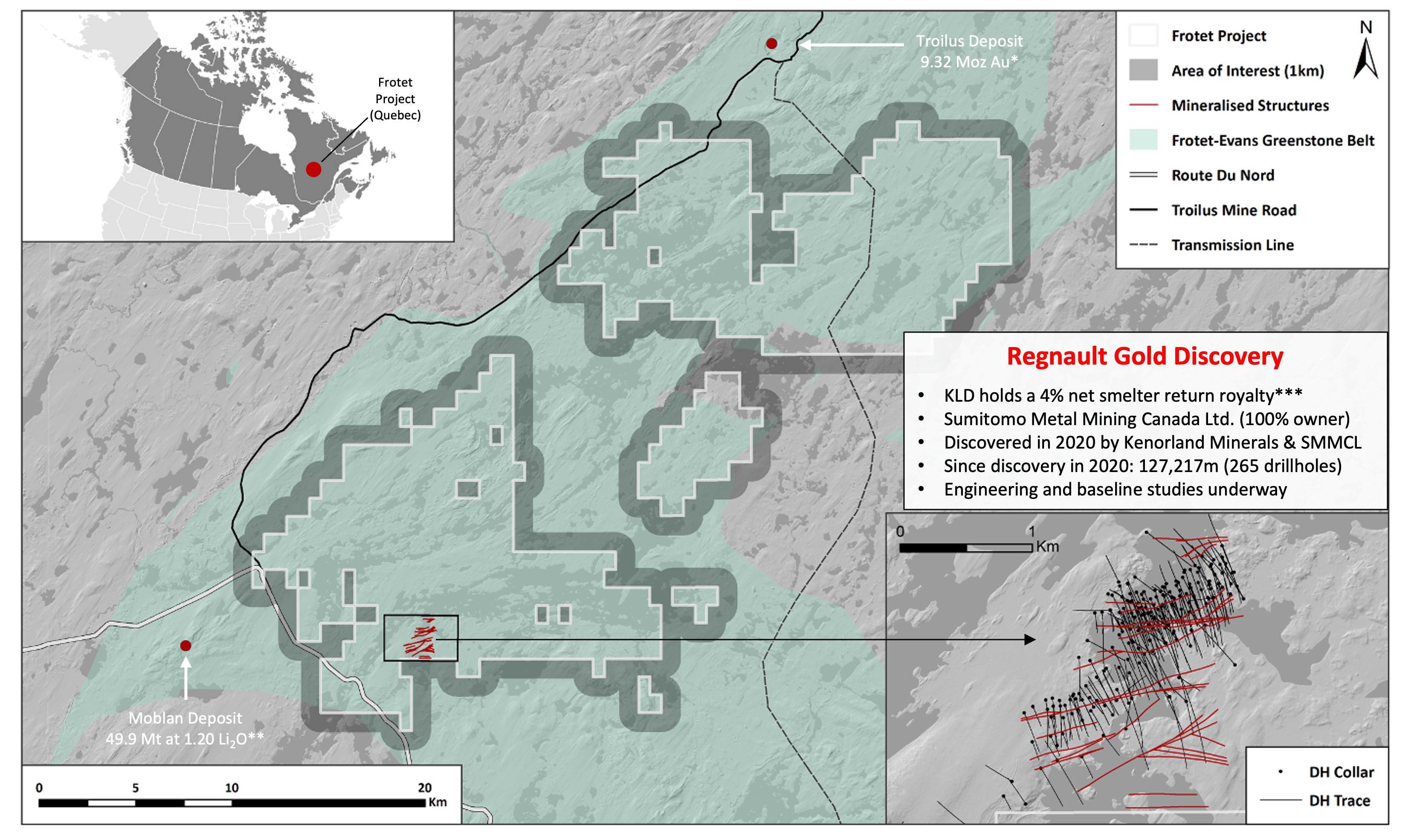

The Frotet Project covers 39,365 hectares of the Frotet-Evans greenstone belt within the Opatica geological sub-province of Quebec. The property is adjacent to the past-producing Troilus Au-Cu mine and covers several major deformation zones associated with known orogenic gold prospects, as well as stratigraphy hosting VMS deposits elsewhere in the belt. The Project hosts the Regnault gold system, a greenfields discovery made by Kenorland and Sumitomo Metal Mining Canada Ltd. in 2020.

Kenorland currently holds a 4% net smelter return royalty on the Project, which was previously held under a Joint Venture agreement between Sumitomo Metal Mining Canada Ltd. and Kenorland Minerals. On January 16, 2024, Kenorland announced the conversion of its 20% Joint Venture interest in the Frotet Project to a 4% NSR Royalty. Kenorland is the current operator of the Project and will help facilitate the successful transition of operatorship to Sumitomo.

On July 2, 2024, Kenorland announced the commencement of engineering and baseline studies in preparation for a potential authorization and permit application for development of an underground exploration decline at the Frotet Project. The environmental and technical baseline studies, necessary for the required permits for underground exploration, are expected to be completed in early 2025. It is anticipated that Sumitomo will be the operator of the Project from sometime in 2025. Sumitomo’s decision to proceed with the development of the exploration decline will be contingent on the outcomes of the baseline studies, the successful acquisition of necessary permits, and the results of a resource estimate at the Regnault Gold Deposit.

Download Technical Report

Location and Access

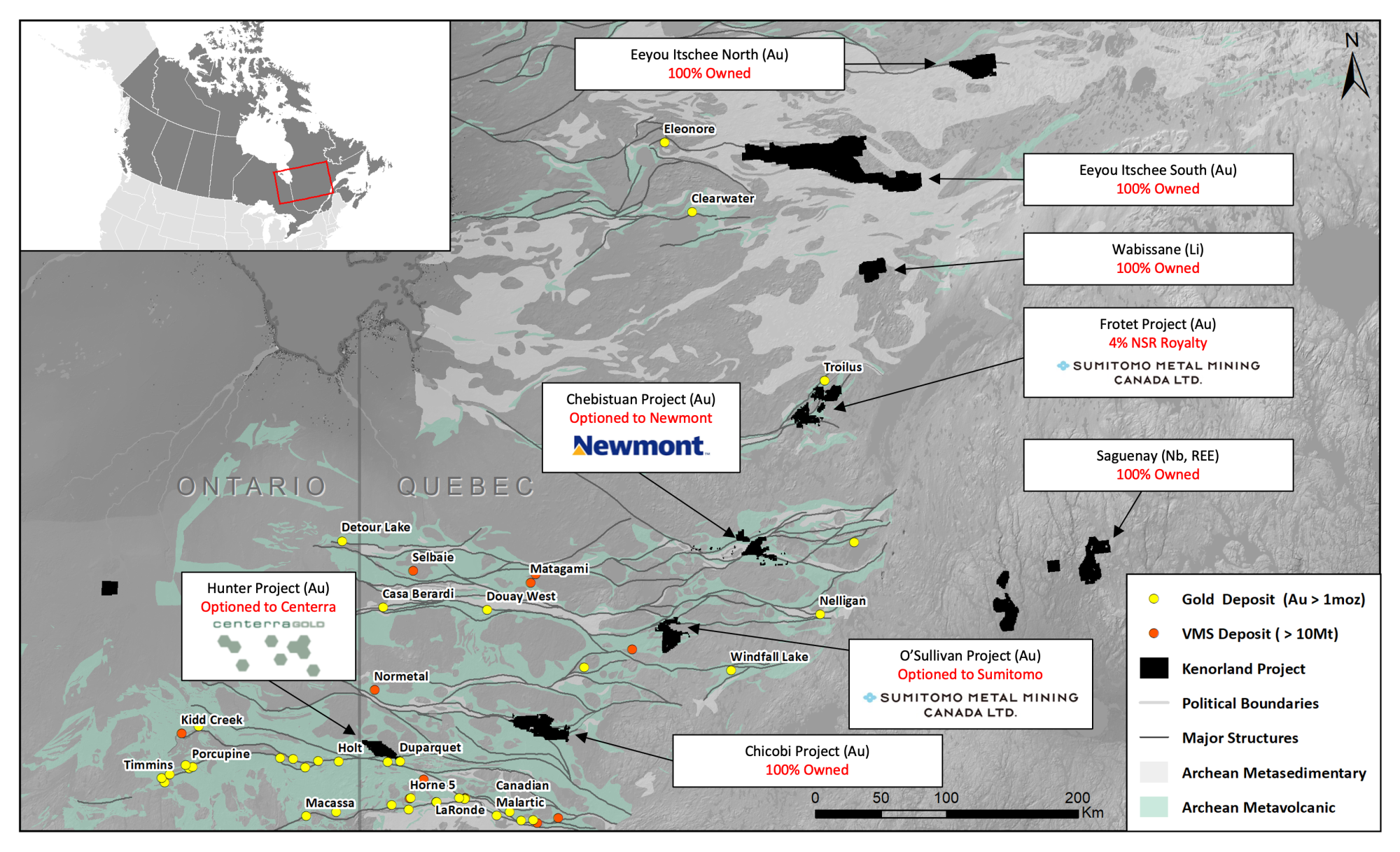

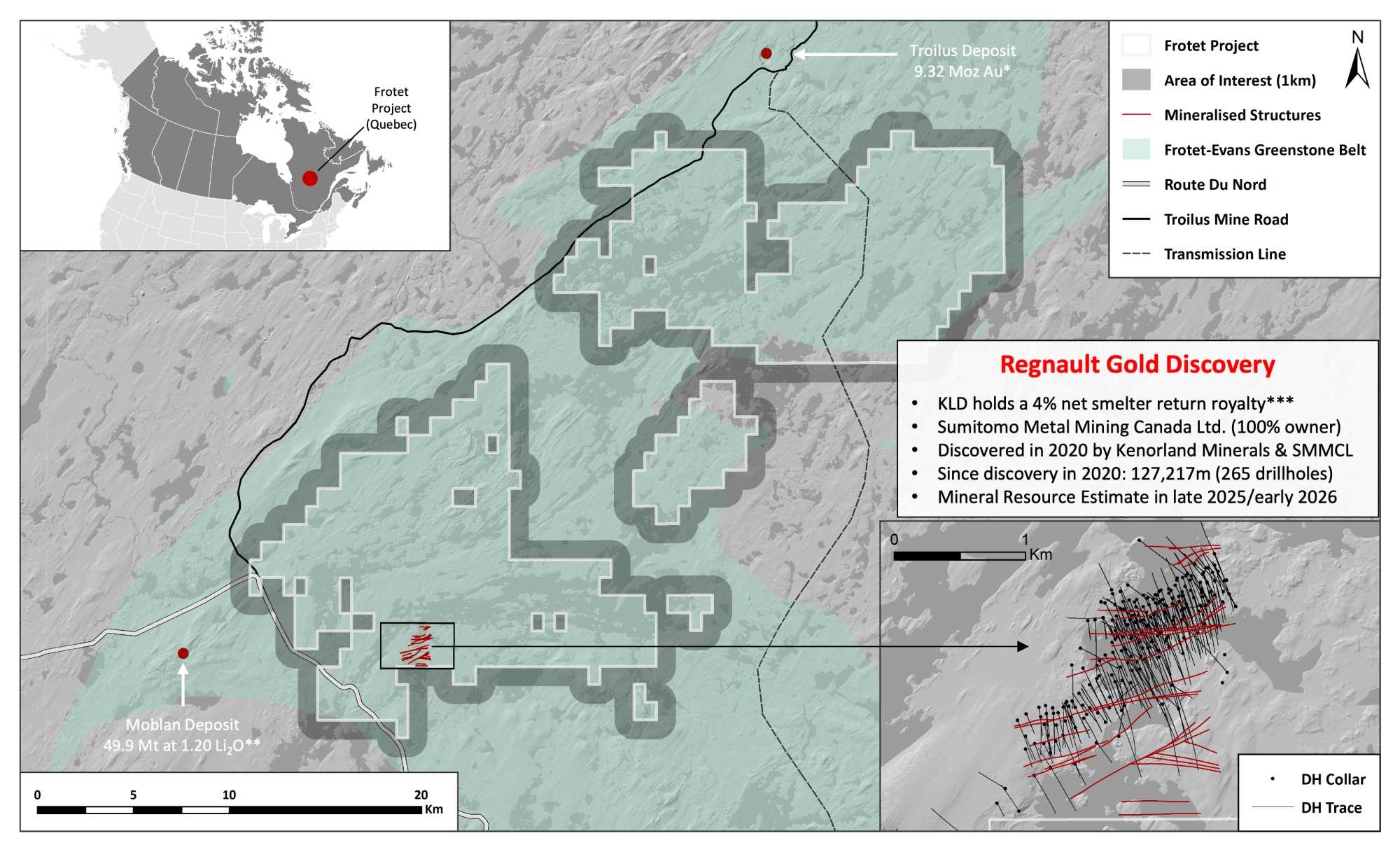

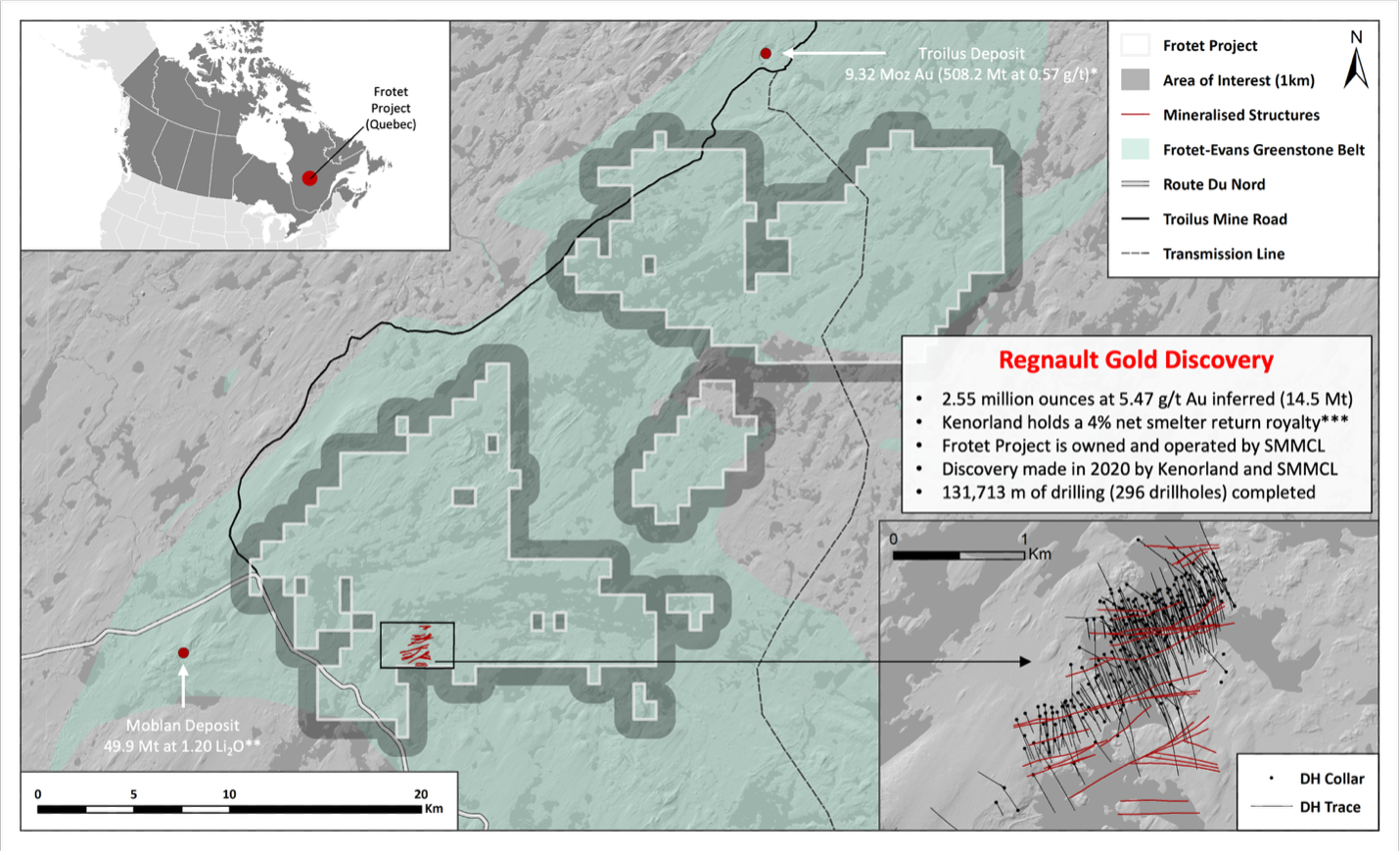

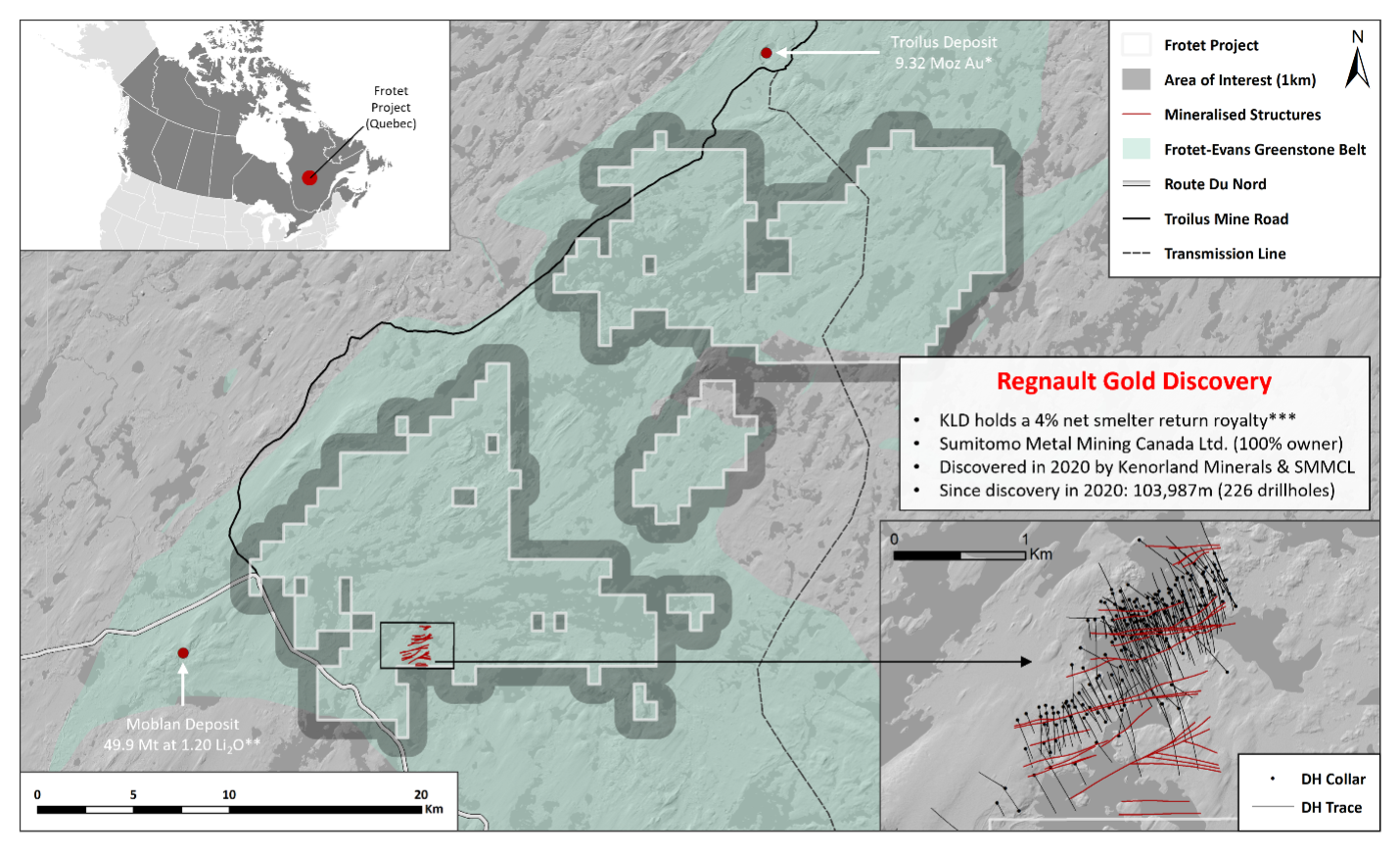

The Project is located 100 kilometers to the north of Chibougamau, Quebec. Favorable infrastructure exists in the Project area with an extensive forestry road network as well as the Route-du-Nord crossing the southwestern portion of the property. A power transmission line also crosses through the property which supplied power to the past producing Troilus mine.

Geology and Mineralisation

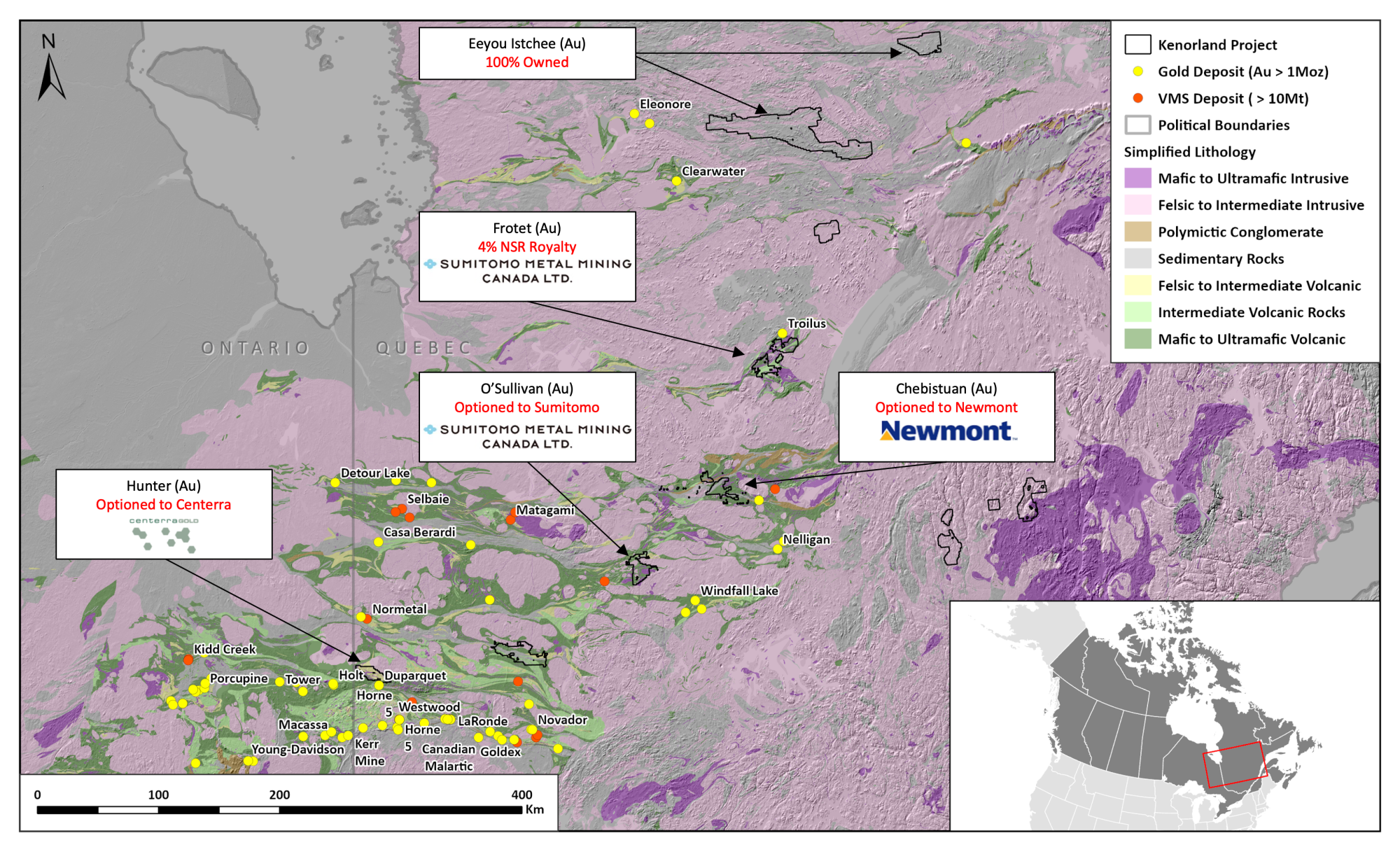

The Archean Frotet-Evans greenstone belt (2793-2755 Ma) is comprised of a volcanic package dominated by mafic to felsic metavolcanic rocks.  The lower volcanic sequences are mafic dominant, composed of basaltic komatiites and high magnesium to iron tholeiites, while the upper sequences are generally intermediate to felsic in composition.  Mafic intrusions are volumetrically abundant throughout the stratigraphic sequence, generally present as differentiated sills contemporaneous with the volcanic strata.  Thin horizons of sedimentary rocks consisting of argillites, greywackes and minor conglomerates are intercalated throughout the stratigraphy. Structurally, the volcanic sequences have been strongly deformed as a result of at least two major deformation events (2720-2690 Ma and 2690-2680 Ma) marked by several regional-scale folds dominating the core of the belt, and numerous major NE and E-W trending structures transecting the property. A significant number of small, high-grade gold-quartz veins have been discovered across the belt, as well as multiple Zn-Cu-Ag-Au VMS deposits occurring in the southern portions of the belt. Together, the structural architecture combined with favourable lithological constraints and proven fertility indicate the Frotet-Evans Project is highly prospective for significant orogenic gold, intrusion-related gold (e.g. Troilus) and VMS mineralisation.

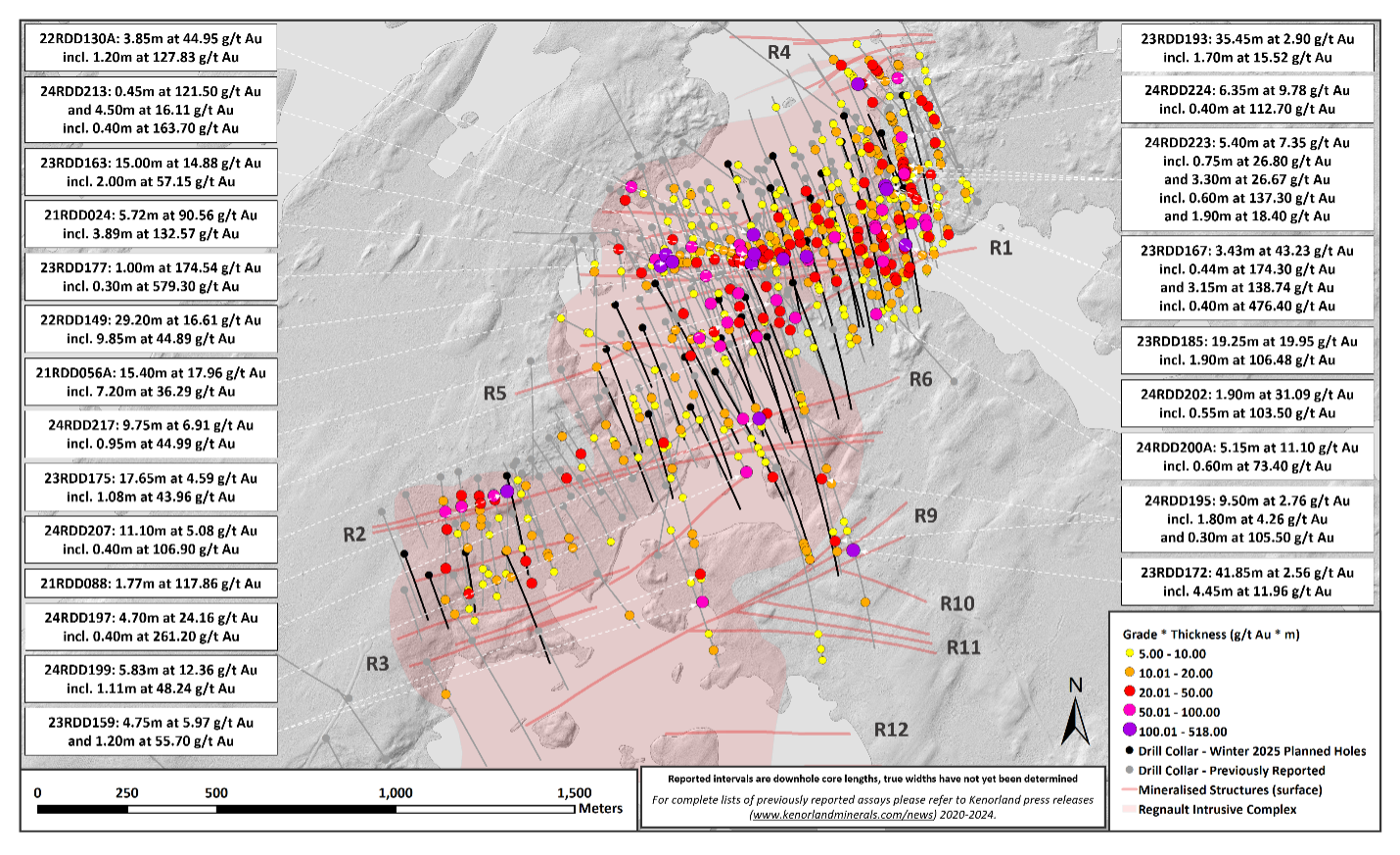

The most significant discovery made to date by Kenorland is the Regnault gold-silver mineralised system. The main host rock of known mineralisation is the multiphase Regnault intrusive complex (diorite, amphibole-phyric diorite, xenolith bearing diorite, and marginal intrusive breccia phases), which have been cross-cut by multiple dyke swarms (quartz-feldspar porphyry, plagioclase porphyry and lamprophyres). The intrusive complex is spatially associated with the fold closure of the Cuvette synform, which has been structurally juxtaposed along the southern limb of the major Frotet antiform. Interpreted to be early, the Regnault intrusive complex and surrounding Frotet Formation volcaniclastic rocks have undergone extensive D2 deformation, focussing strain development along generally east-west trending, steeply dipping shear zones and represent the primary control of high-grade quartz vein hosted mineralisation.

Mineralised structures transect both the multiphase Regnault intrusive complex and surrounding volcanic rocks, defined by steeply dipping zones of moderate-strong strain, biotite-calcite ± silica-chlorite alteration and disseminated pyrite locally up to 3-10% (dominant style for R1 and R2 East). High-grade intercepts are characteristically shear-hosted, laminated quartz-carbonate-pyrite veins, often haloed by variably deformed extensional stockwork quartz veining locally containing up to 20% pyrite along with trace chalcopyrite and occasional Au±Ag tellurides and visible gold. Where east-west shear zones intersect the diorite-volcanic contact, rheologically controlled zones of dilation has resulted in stacked, shallow north dipping extensional type quartz-pyrite veins (dominant style for R2 West).

Exploration History

Limited systematic historical exploration had been completed across Kenorland’s claim package. The discovery of copper-nickel bearing float samples in 1958 led to a staking rush, and subsequent discovery of many of the VMS occurrences to the south of the current property.  The past producing Troilus Au-Cu deposit was discovered in the mid 1980’s as the result of reconnaissance exploration programs by Kerr Addison (lake sediment and soil sampling, and prospecting) concentrated along the western half of the Frotet-Evans greenstone belt. The region has seen very little follow-up exploration since the 1980’s, but modern geophysical surveys have added to the structural understanding of the Frotet-Evans greenstone belt architecture.

Summary of exploration activities conducted by Kenorland Minerals

2017-2019

The Frotet Project was acquired by Kenorland through map staking in March, 2017 and was optioned to Sumitomo Mining Metals Canada Limited (“SMMCL”) in April, 2018.  In summer of 2018, Kenorland and SMMCL completed a property-wide B-horizon soil sampling program (till substrate) over 55,921 ha on an approximate 1500m x 150m grid for a total of 2,308 samples.  In winter of 2018-2019 a high-resolution helicopter-borne aeromagnetic survey was flown over areas of gold-in-soil anomalism.  In spring of 2019, a property-wide LIDAR survey was flown to give context to surficial geology conditions and structural geology.  In summer of 2019, infill soil sampling, till sampling, geologic mapping and boulder prospecting were conducted in geochemically anomalous areas.  This work defined the Regnault target area, which was selected for a maiden diamond drilling program in winter of 2020. In preparation for diamond drilling Kenorland conducted further geophysical work including a high-resolution drone magnetic survey and an induced polarisation (IP) survey to aide in the delineation of targets.

2020

The maiden drill program at the Regnault target consisted of 5,920m of diamond drill core, which intersected significant gold mineralisation in 8 out of the 15 holes testing various geological and geophysical targets. A follow-up 1,902m diamond drill program in the summer of 2020 also intersected significant gold mineralisation in the Regnault target area, including the discovery of additional gold-bearing structures. Following the initial discovery, an additional detailed helicopter-borne magnetic survey was flown along with a detailed 3D IP survey extending along the Regnault trend to the south of the initial discovery area.  Additional infill detailed B-horizon soil sampling was also completed along the Regnault trend. Significant drill results returned during 2020 included:

  • 20RDD002: 3.75m at 16.06 g/t Au
  • 20RDD007: 29.08m at 8.47 g/t Au incl. 11.13m at 18.43 g/t Au
  • 20RDD021A: 2.66m at 33.69 g/t Au

2021 Winter Program

The Company and Sumitomo completed a winter diamond drill program between March and April of 2021 at the Regnault discovery area. The drill program consisted of 8,591m of diamond drilling and 30 completed drill holes. The objectives of this drill program were to follow up on known mineralised structures identified during the 2020 discovery drill programs, as well as continue exploration along strike and to the south of the Regnault Discovery area, testing additional regional targets within the Regnault area. This phase of drilling helped define the mineralised R1 Trend which generally strikes east-west, dipping steeply to the north and had been traced for 550m along strike, open in either direction. The R2 Trend was also identified during this phase of drilling, a structure located over 500m to the south of, and oriented sub-parallel to, the R1 structure. Significant drill results returned from the R1 Trend during this phase of drilling included:

  • 21RDD024: 5.72m at 90.56 g/t Au incl. 3.89m at 132.57 g/t Au
  • 21RDD037: 25.33m at 6.29 g/t Au incl. 4.59m @ 22.06 g/t Au

At the completion of the winter drill program, Sumitomo had incurred a total of $8.3 million in exploration expenditures towards the earn-in and joint venture exploration agreement, earning an 80% interest in the Frotet Property.

2021 Summer Program

Between July and October of 2021 the Company completed its 2021 Summer exploration program which included 57 diamond drill holes (17,792m) at the Regnault gold discovery.  This program was designed to systematically step-out along strike and down dip of the known structures (R1, R2 West, R2 East Trends) which were defined during the 2021 winter drill campaign, as well as explore for additional mineralised structures within the Regnault gold system.

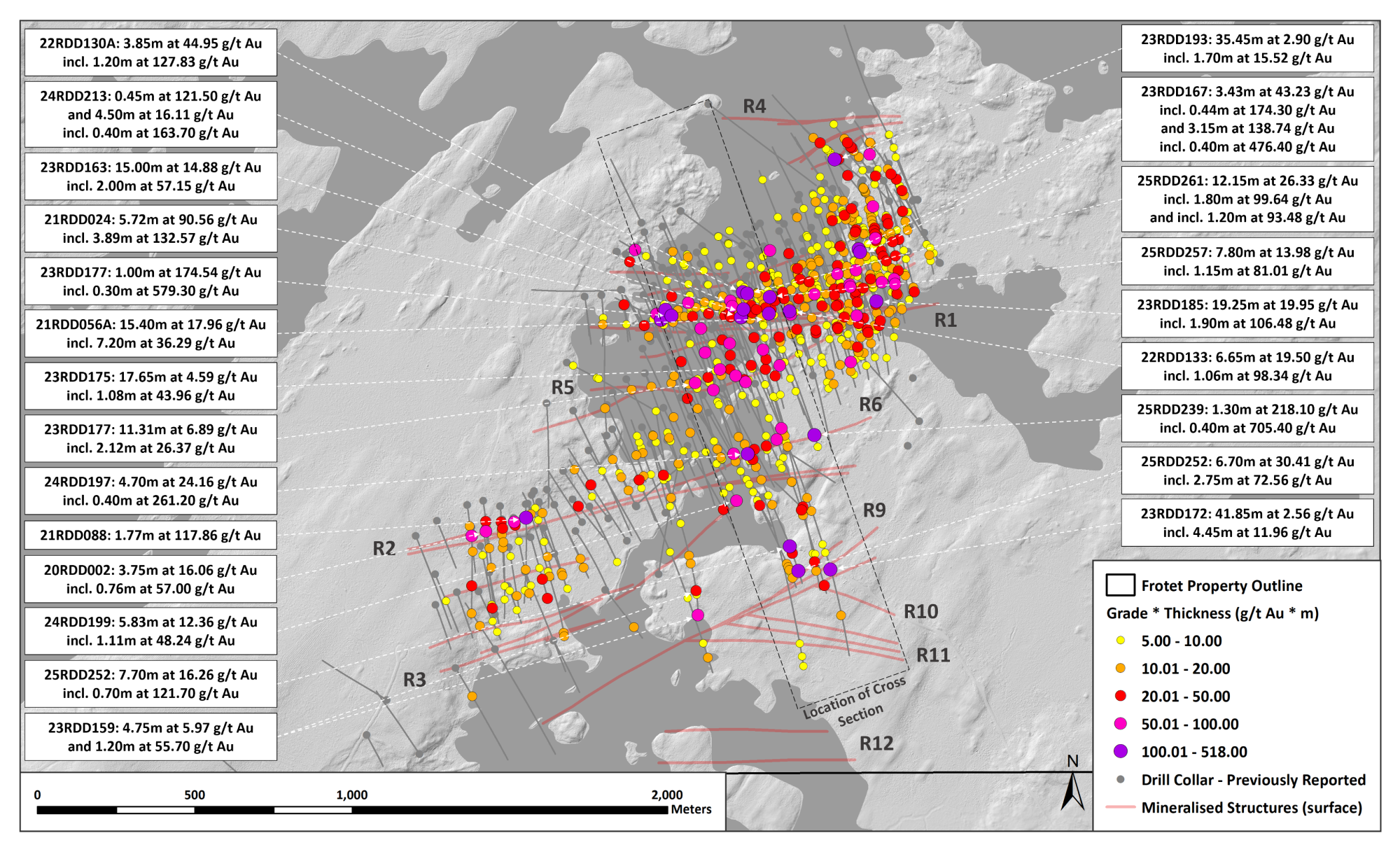

Along the R1 Trend, the vein system was drilled on approximately 50m centers, testing down to approximately 275m depth, as well as extending the east-west strike length to 750m. At R2 West, stepping out on approximately 50m centers, drilling demonstrated the presence of several stacked, high grade, extensional type quartz veins. Drilling on 100m spaced sections along R2 East intersected wide, east-west trending mineralised shear zones which intersect the diorite-volcanic contact. Drilling completed on the R2 Trend identified gold mineralisation along 950m of strike length trending east-northeast and to depths of 350m below surface. Assay results from 32 of the 57 completed drill holes have been received to date, significant results include:

  • 21RDD056A: 15.40m at 17.96 g/t Au incl. 7.20m at 36.29 g/t Au
  • 21RDD060: 3.00m at 32.21 g/t Au
  • 21RDD074: 3.45m at 17.53 g/t Au incl. 0.50m at 114.60 g/t Au
  • 21RDD077: 14.20m at 3.91 g/t Au incl. 2.73m at 15.34 g/t Au
  • 21RDD088: 1.77m at 117.86 g/t Au
  • 21RDD100: 6.88m at 23.79 g/t Au incl. 2.60m at 60.77 g/t Au

In addition to the drill program, follow-up surface exploration, including mapping, prospecting, infill till and soil geochemical sampling, was also completed over multiple regional target areas within the Frotet Project.

2022 Winter Program

A multi-disciplinary program was completed at Frotet between January and March of 2022 including diamond drilling at Regnault and ground IP surveys at the Cressida and Chantillon regional targets. Drilling completed at Regnault was designed primarily to expand the strike extent along the R2 and R4 trends, testing the down dip extents of the R1 mineralised structure, and explore for additional mineralised structures immediately to the south of R1. Along the R1 Trend, drilling successfully extended the mineralised structures for a known strike length of 850m and to depths of 400m below surface. Immediately to the south of the R1 Trend, drilling discovered multiple sub-parallel mineralised structures, including the R5, R6, R7 and R8, which can be traced for a strike length of 400m, and to 450m at depth. Results from these new vein discoveries are comparable to some of the best results from the R1 trend, which has been one of the main focuses of the deposit since the initial discovery in 2020.

  • 22RDD130A: 3.85m at 44.95 g/t Au incl. 1.20m at 127.83 g/t Au
  • 22RDD133: 6.65m at 19.50 g/t Au incl. 1.06m at 98.34 g/t Au

In addition to the drilling at Regnault, ground IP surveys were completed over the Company’s Cressida and Chantillon regional targets. The Cressida target is located directly along strike and within the main mineralised corridor hosting the former producing Troilus Gold Mine, currently being explored by Troilus Gold Corp.

2022 Summer Program

From April to July 2022 a summer exploration program was completed at the Frotet Project including 23 holes totalling 11,903m at the Regnault discovery and 8 holes totalling 2,511m at the Cressida target. At Regnault, the drilling was focused on the eastern margin of the intrusive complex, targeting step-outs on the R1 shear zone and R4 veins, as well as following up on the R6, R7 and R8 veins discovered during the 2022 Winter program. Drillhole results returned from these structures extend mineralisation in the R6, R7, R8 corridor to 600m of strike length and to depths greater than 600m, including:

  • 22RDD136: 20.55m at 2.80 g/t Au incl. 3.50m at 10.72 g/t Au
  • 22RDD141A: 20.79m at 2.78 g/t Au incl. 1.50m at 15.28 g/t Au
  • 22RDD144: 2.91m at 31.52 g/t Au incl. 0.34m at 253.50 g/t Au
  • 22RDD144: 1.85m at 31.75 g/t Au incl. 0.33m at 147.80 g/t Au

Drilling at the Cressida target resulted in widespread disseminated to stringer and banded pyrrhotite-pyrite mineralisation within foliated mafic and intermediate volcanics, with associated quartz veinlets and biotite-calcite alteration. Assay results returned up to 7.93m at 1.11 g/t Au and 1.50 g/t Ag (22CRDD004) and 7.93m at 1.11 g/t Au and 1.50 g/t Ag (22CRDD007)

A preliminary metallurgical study was initiated with drillhole 22RDD149 intersecting 7.93m at 1.11 g/t Au and 1.50 g/t Ag, a twin of the Regnault discovery hole 20RDD007. Objectives included the analysis of mineralogical characteristics and preliminary assessment of Au-Ag recovery through cyanide leaching. Promising recoveries of up to 89.9% for Au and 86.2% for Ag with conventional grinding, cyanide leaching and oxygen purging.

2023 Winter Program

A total of 15 holes totalling 13,360m were completed between February and March of 2023. The program was largely designed to continue to test strike and depth extent of the R5, R6, R7 and R8 structures, focused on an area of limited drilling between these 2022 vein discoveries and the R2 and R3 structures to the west. All drillholes intersected mineralisation across multiple structures, linking the two areas and defining a corridor of up to 1.8 kilometers of strike. Notable intercepts include:

  • 23RDD162: 7.10m at 12.24 g/t Au incl. 1.70m at 45.14 g/t Au
  • 23RDD166:  24.70m at 3.28 g/t Au incl. 1.77m at 26.09 g/t Au and incl. 0.35m at 34.50 g/t Au
  • 23RDD169: 7.00m at 5.31 g/t Au incl. 0.60m at 36.30 g/t Au

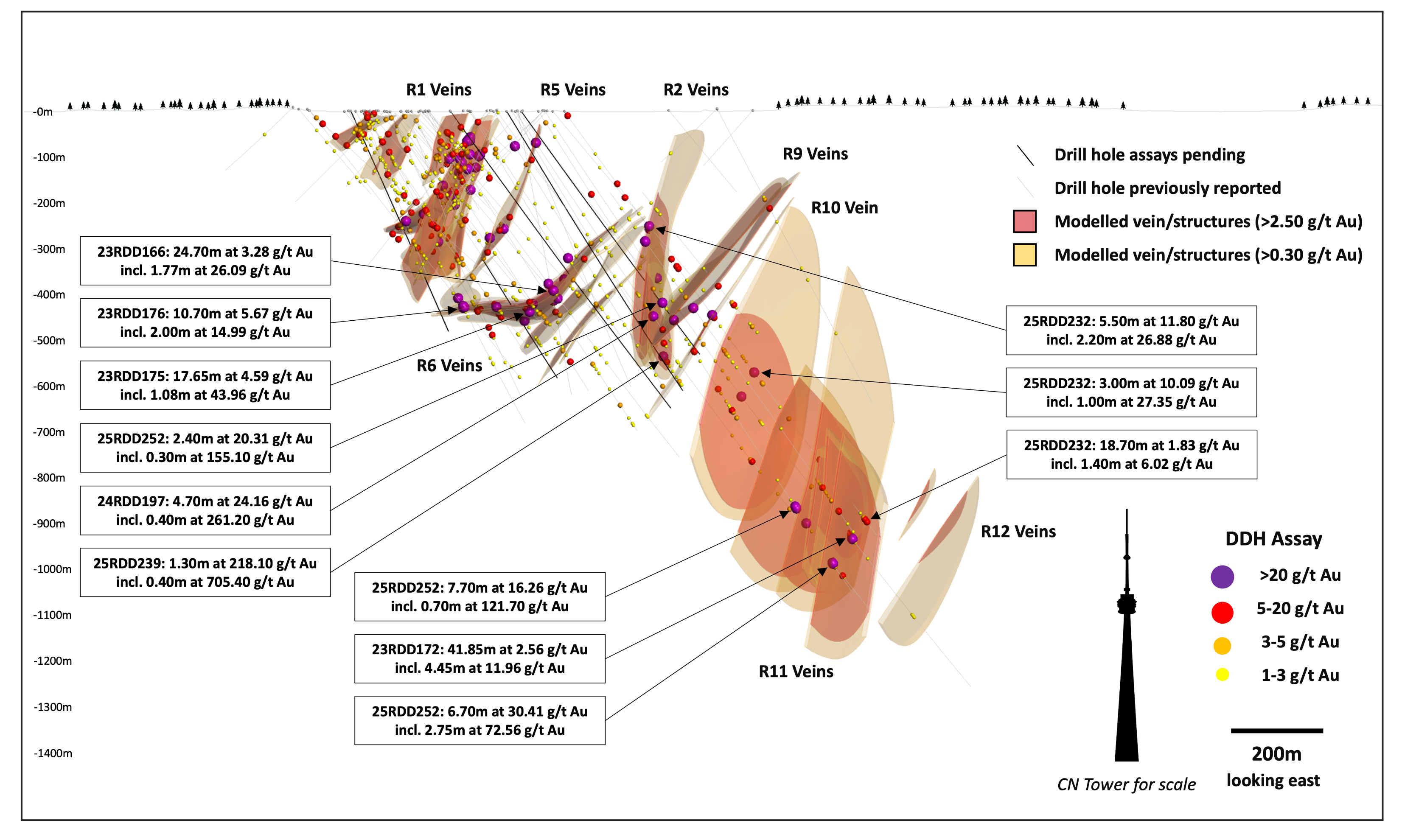

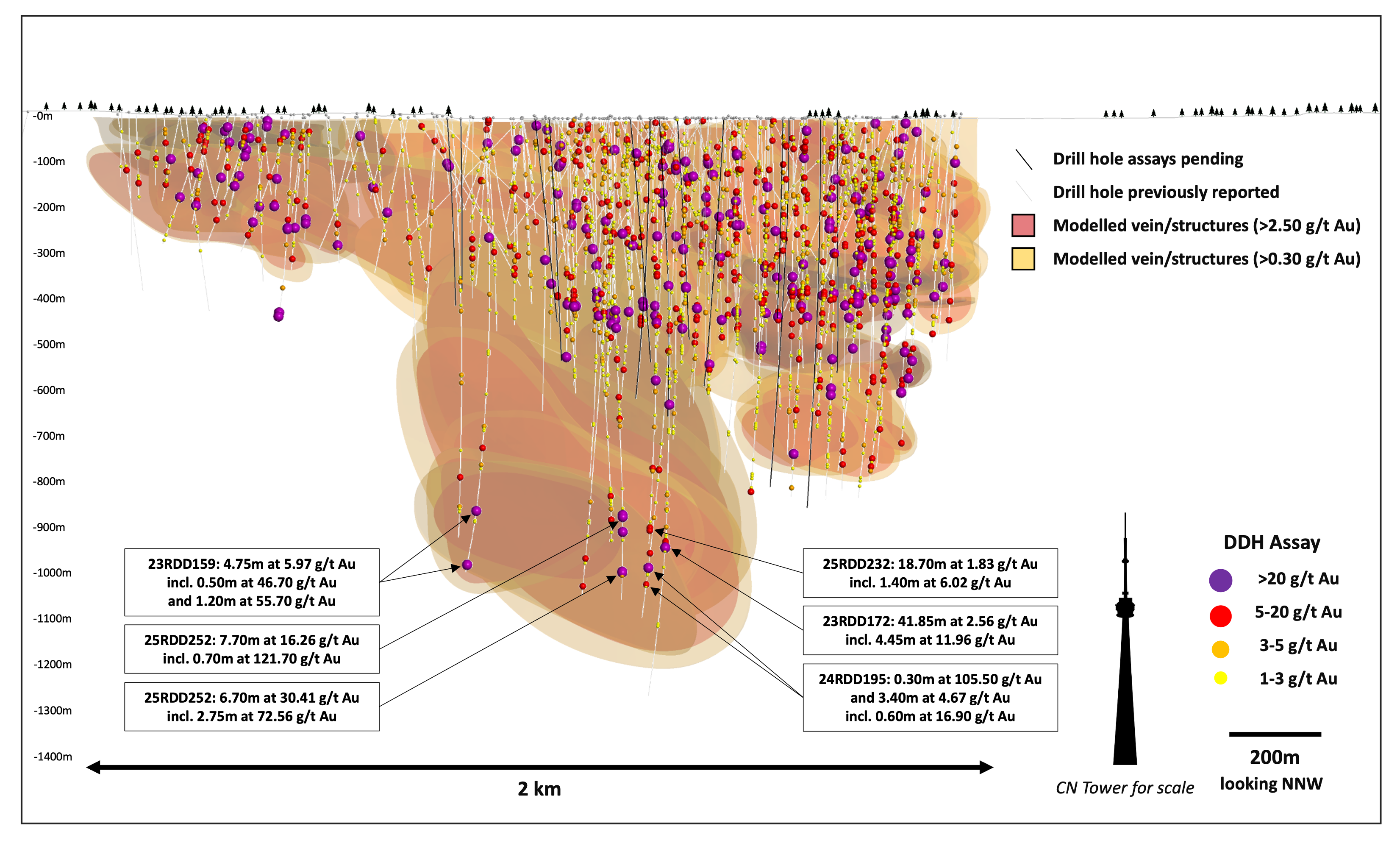

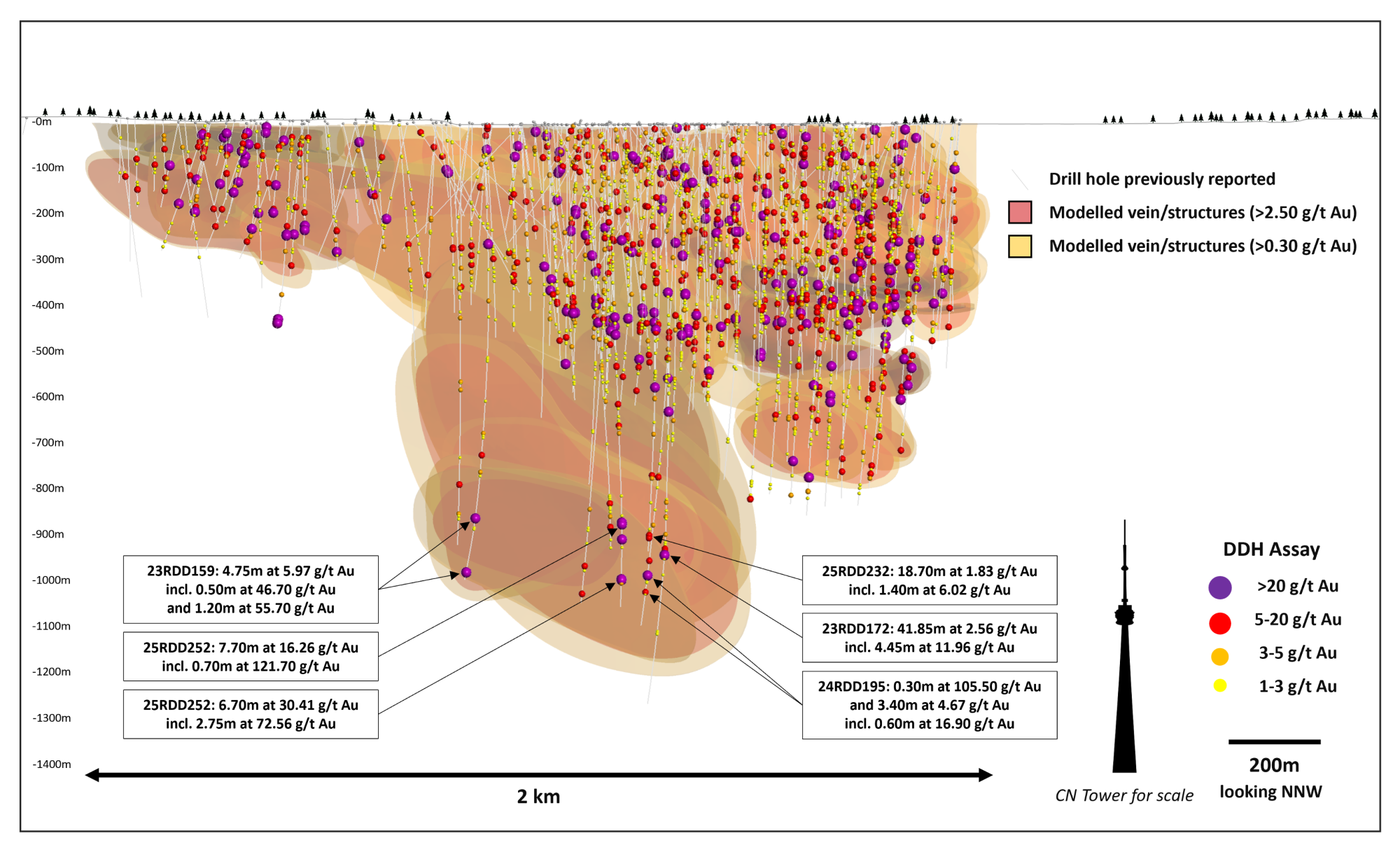

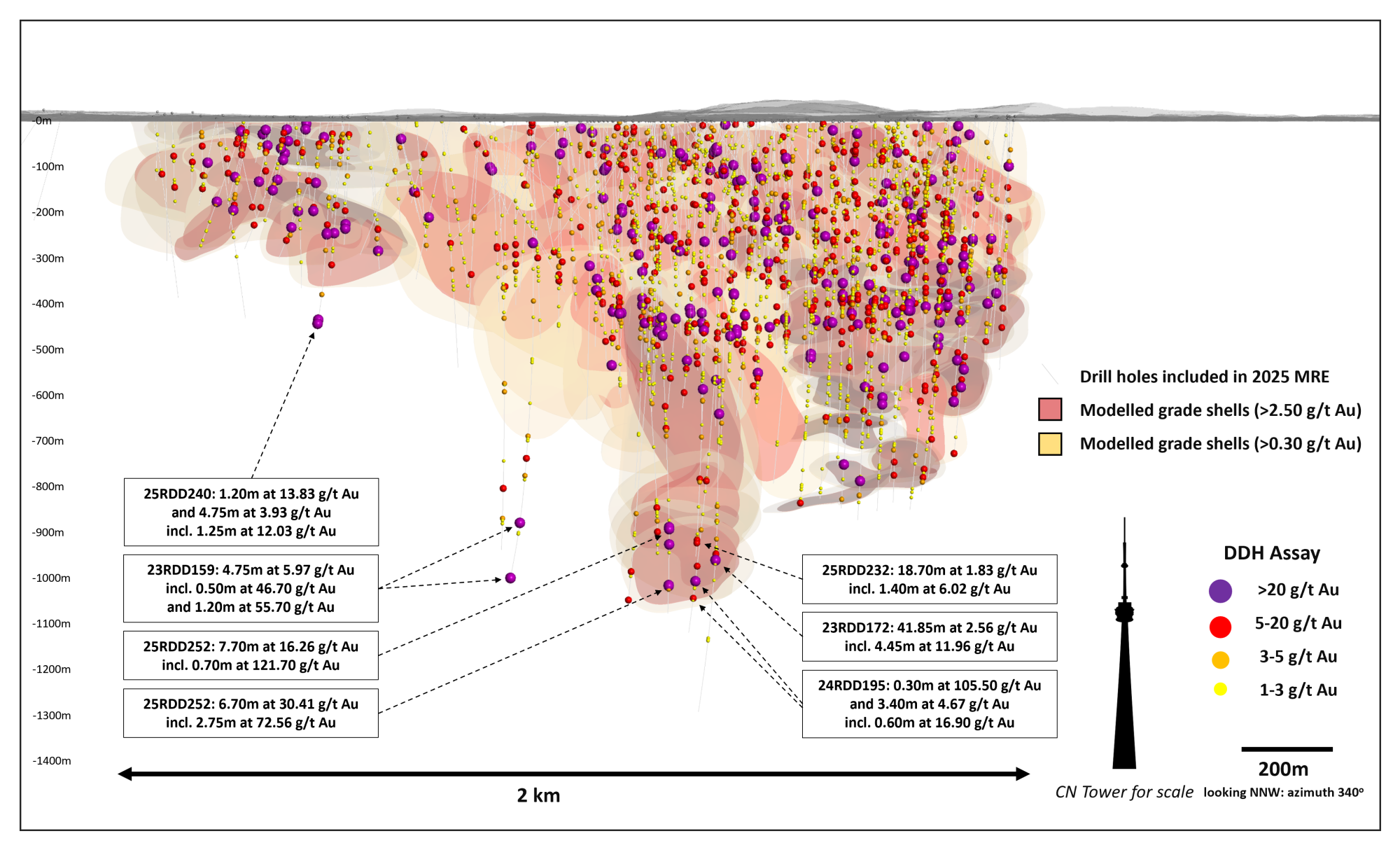

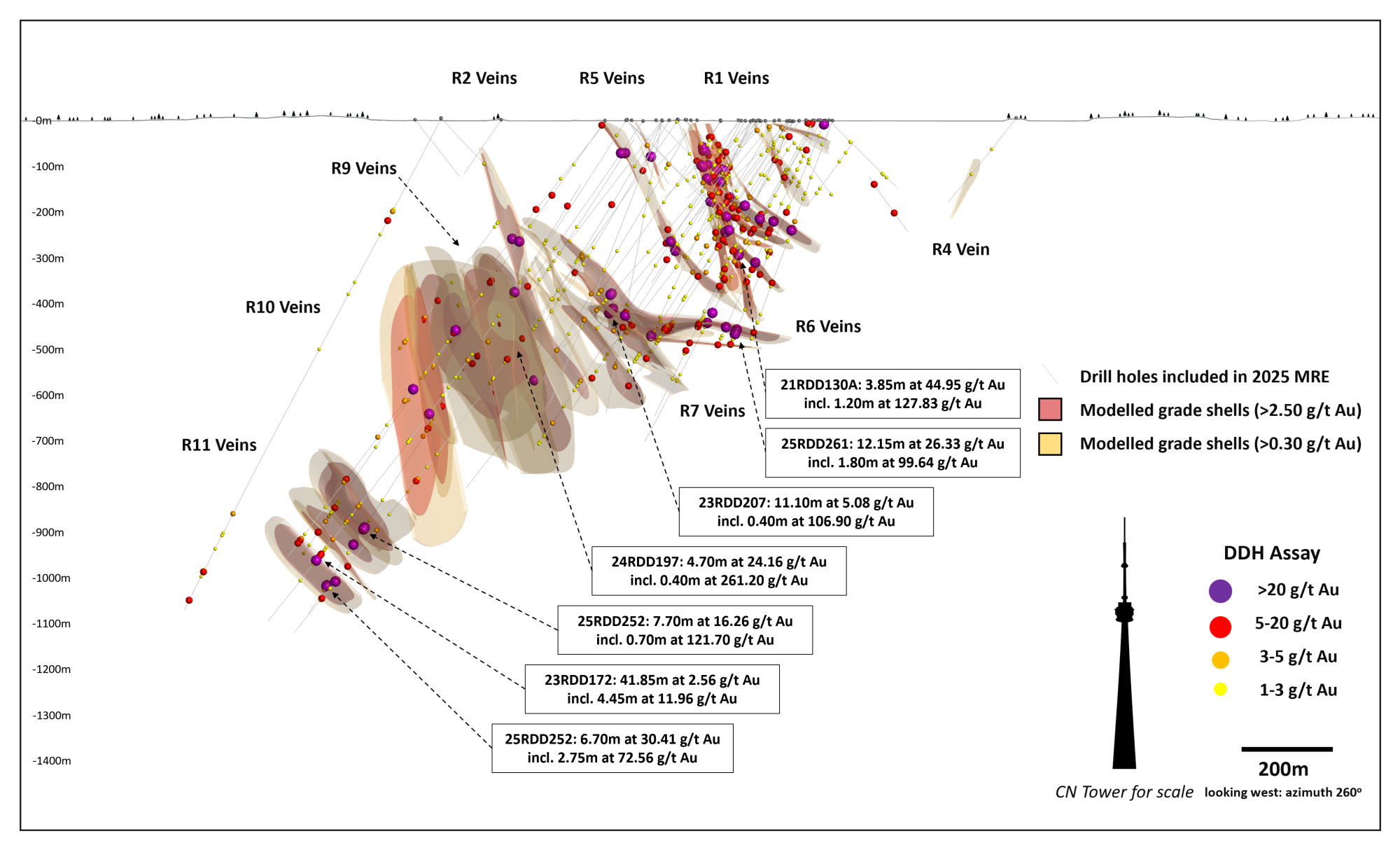

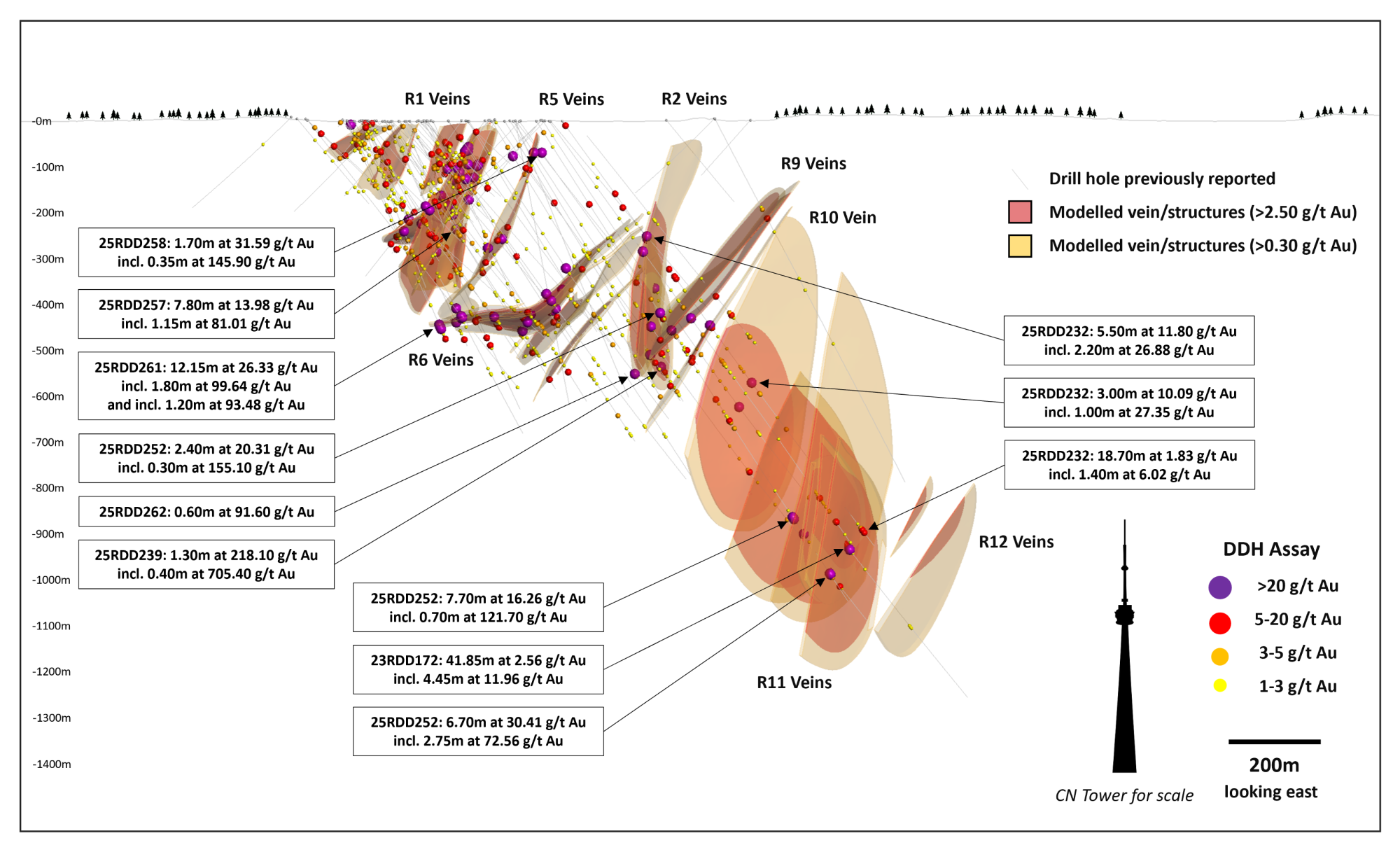

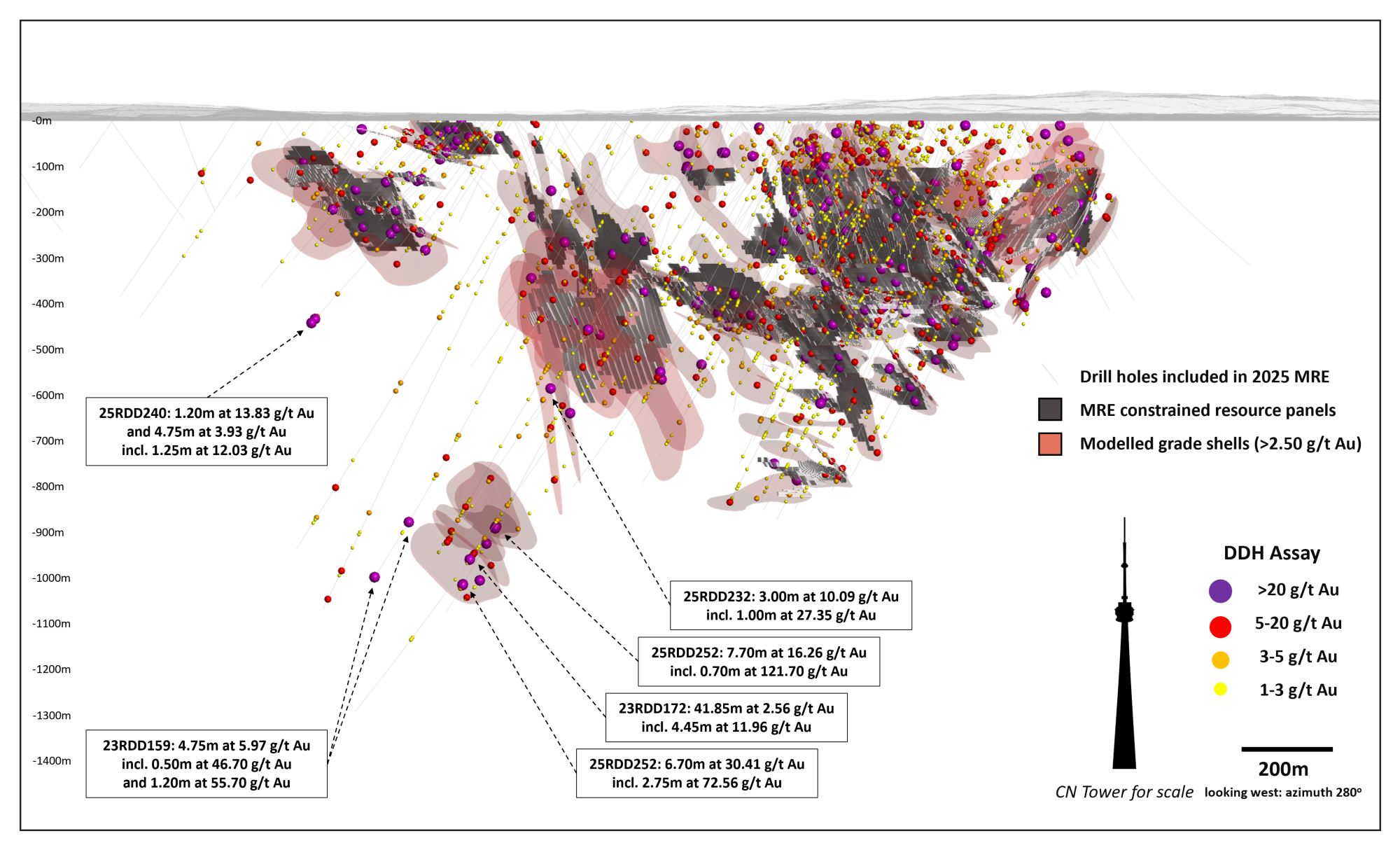

Deep exploration drilling was also conducted to explore for further sub-parallel veins at depth and to the south of known mineralised structures. These deep holes, up to 1,614m in depth, successfully discovered new vein structures, the Rx veins, and significantly extend the known footprint of the Regnault gold system to vertical depths greater than one kilometer. Assay results include:

  • 23RDD159: 4.75m at 5.97 g/t Au incl. 0.50m at 46.70g/t Au
  • 23RDD159: 1.20m at 55.70 g/t Au
  • 23RDD172:  41.85m at 2.56 g/t Au incl. 4.45m at 11.96 g/t Au

Additional metallurgical test work was completed on the material investigated in 2022, investigating the effects of gravity separation and flotation prior to treatment by cyanide leaching and recovery of Au and Ag. Results indicate the highest recoveries continue to be from test procedures involving conventional grinding, cyanide leaching and oxygen purging. Optimizing parameters returned recoveries of up to 93.3% Au and 90.5% Ag.

2023 Fall Program

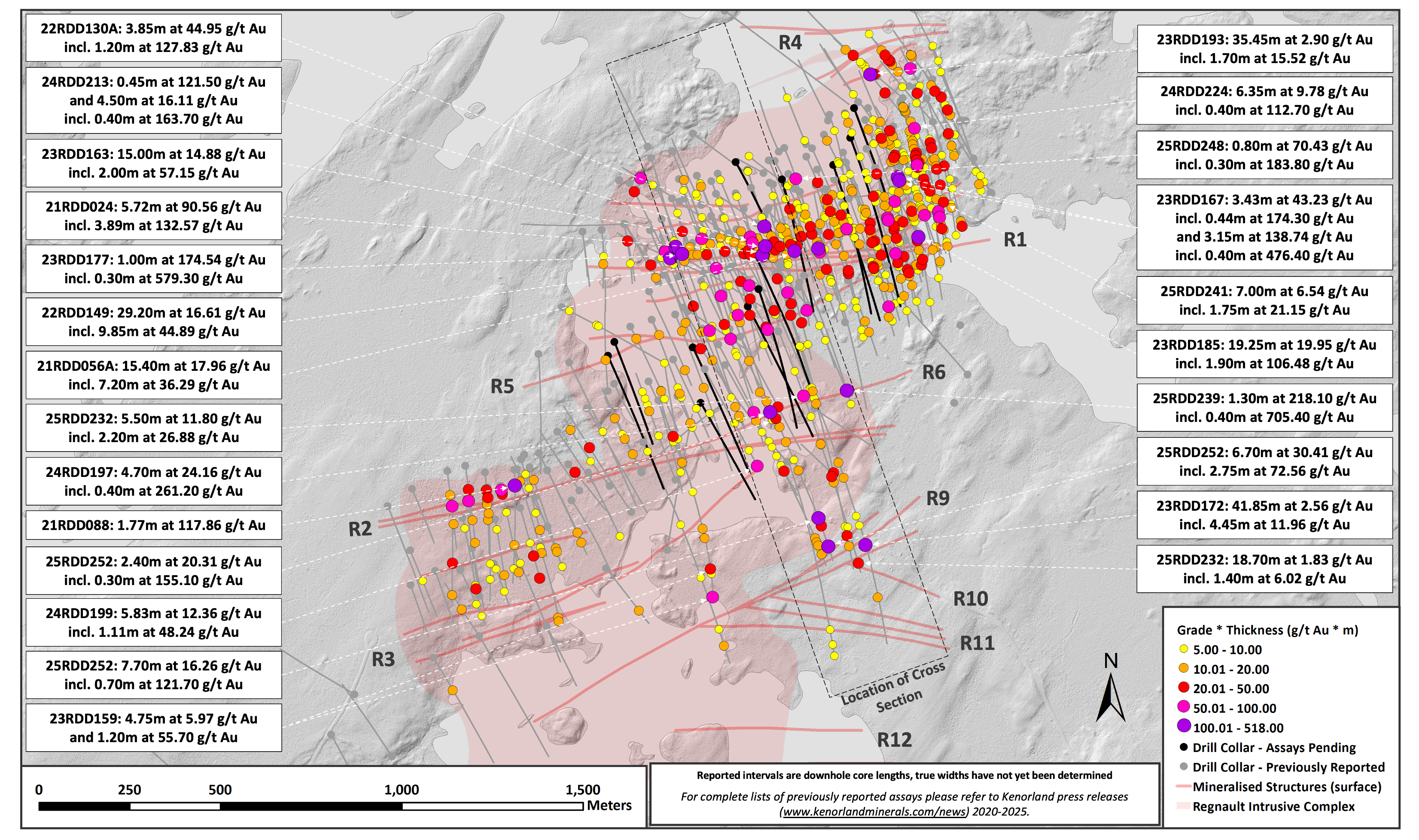

During the 2023 Fall diamond drill program, a total of 20 drill holes, totaling 11,918m of drilling was completed. The majority of drilling targeted broad step-outs and infill along known mineralised trends throughout the Regnault deposit. Main target areas included the R4, R5, R6, R7 and R8 mineralised trends at depth while infilling the R1 structural corridor, and infill targets within the western portions of the R2 and R3 mineralised structures. Many significant results were obtained including:

  • 23RDD185: 19.25m at 19.95 g/t Au incl. 1.90m at 106.48 g/t Au at R6
  • 23RDD177: 1.00 m at 174.54 g/t Au incl. 0.30m at 579.30 g/t Au at R1
  • 23RDD193: 35.45m at 2.90 g/t Au incl. 1.70m at 15.52 g/t Au at R4
  • 23RDD175: 17.65m at 4.59 g/t Au incl. 1.08m at 43.96 g/t Au at R5
  • 23RDD177: 11.31m at 6.89 g/t Au incl. 2.12m at 26.37 g/t Au at R5
  • 23RDD176: 10.70m at 5.67 g/t Au incl. 2.00m at 14.99 g/t Au at R5
  • 23RDD182: 1.00m at 54.40 g/t Au at R2
  • 23RDD187: 8.95m at 6.34 g/t Au incl. 1.45m at 20.27 g/t Au at R4

Two drill holes were designed to test the shallower portions of the Regnault diorite up dip from the 2023 winter discovery holes that intersected mineralisation down to 1,000m vertical depth including 23RDD172 which returned 2.56 g/t over 41.85m including 11.96 g/t Au over 4.45m. These large step-outs (200-300m) returned narrow, moderate grade mineralisation within the R9, R10, and R11 shear zones including 23RDD174 which returned 3.70m at 2.14 g/t Au including 0.40m at 10.70 g/t Au.

2024 Winter Program

On March 23, 2024, Kenorland concluded the winter 2024 drill program consisting of 18,448 meters of diamond drilling at the Regnault gold deposit. The program focused on infill and step-out drilling, which increased the confidence of the vein system geometries and grade continuity along the R1, R2, R3, R5, R6, R7, and R8 structures. Many significant results were obtained including:

  • 24RDD197: 4.70m at 24.16 g/t Au incl. 0.40m at 261.20 g/t Au at R2
  • 24RDD215: 9.50m at 9.10 g/t Au incl. 1.20m at 45.92 g/t Au at R6
  • 24RDD213: 4.50m at 16.11 g/t Au incl. 0.40m at 163.70 g/t Au at R1
  • 24RDD199: 5.83m at 12.36 g/t Au incl. 1.11m at 48.24 g/t Au at R9
  • 24RDD202: 12.00m at 5.94 g/t Au incl. 2.50m at 21.99 g/t Au at R1
  • 24RDD198: 29.50m at 2.41 g/t Au incl. 7.20m at 6.27 g/t Au at R6
  • 24RDD202: 26.60m at 2.54 g/t Au incl. 2.10m at 6.04 g/t Au at R6
  • 24RDD217: 9.75m at 6.91 g/t Au incl. 0.95m at 44.99 g/t Au at R6
  • 24RDD202: 1.90m at 31.09 g/t Au incl. 0.55m at 103.50 g/t Au at R1
  • 24RDD200A: 5.15m at 11.10 g/t Au incl. 0.60m at 73.40 g/t Au at R8
  • 24RDD207: 11.10m at 5.08 g/t Au incl. 0.40m at 106.90 g/t Au at R6
  • 24RDD198: 2.90m at 17.71 g/t Au incl. 0.30m at 153.70 g/t Au at R1

Since the Regnault gold discovery in 2020, a total of 100,721 meters of drilling has been completed including 220 drillholes.

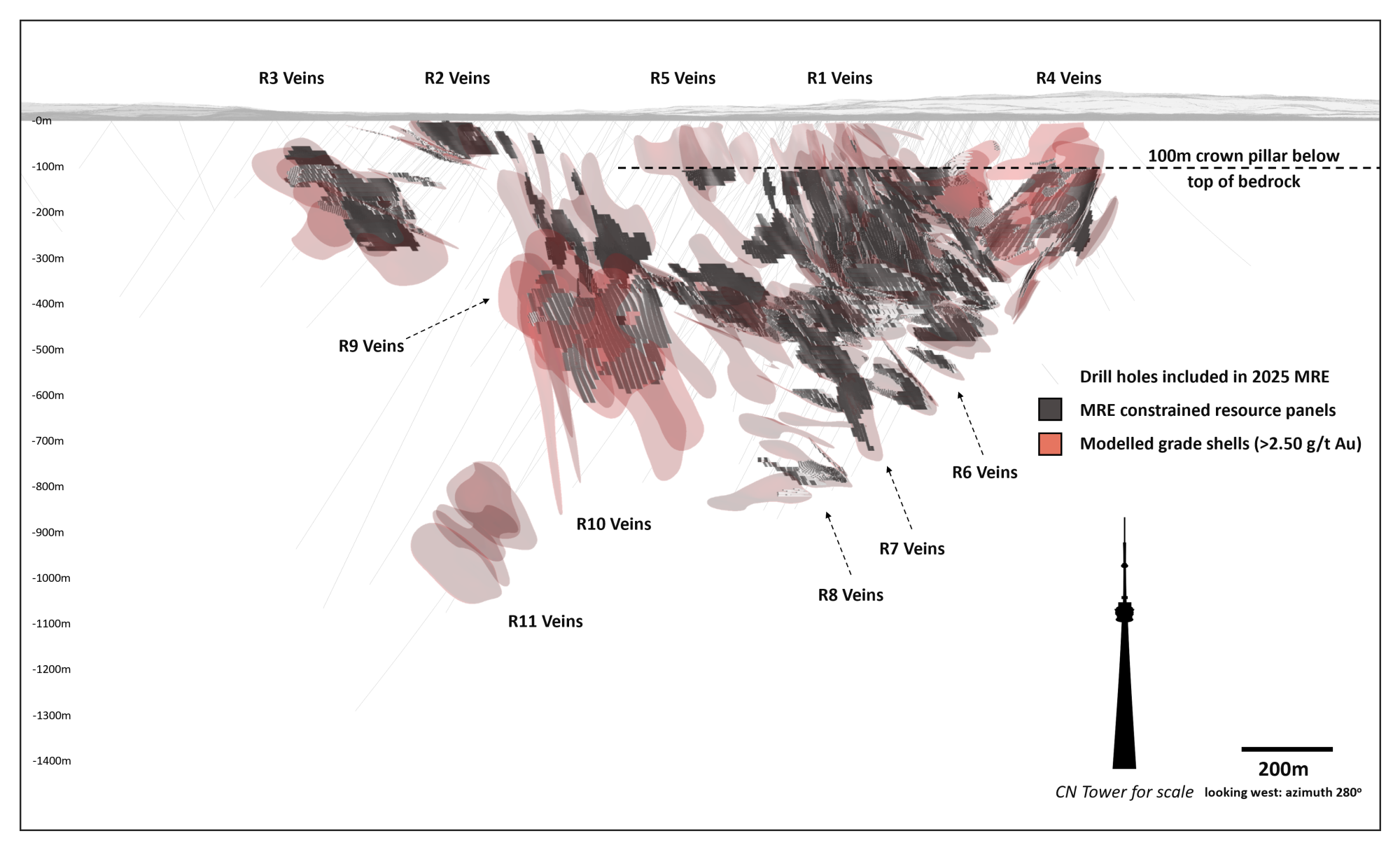

Geologic modelling of the Regnault gold deposit is ongoing, along with planning for the summer 2024 exploration campaign. Kenorland will continue to provide exploration updates, including drill results, as the project advances.
